Ultrasonic Transmission Cell

Objective

Ultrasonic velocity and attenuation measurements can be used as a versatile analytical tool to detect struc-tural changes in complex fluids. Ultrasonic velocity measurements can be used to characterize complexation reactions in dilute biological and synthetic polymer solutions or gelation phenomena in food formulations. Attenuation measurements are sensitive to structural changes and phase transitions in emulsions and surfactant solutions. In particular the dynamic glass transition temperature Tg,dyn of polymer particles in dispersions or suspensions can be determined with high accuracy. This is relevant whenever thermal analysis is either not sensitive enough or the heat flow is dominated by other phenomena, like the crystallization/melting of the aqueous phase. Tg is accessible even in complex colloidal systems with low polymer content (e.g. coating colors). Isothermal measurements are used to monitor emulsion polymerization reactions and to study the kinetics of swelling phenomena. During the reaction process the sound velocity increases by about 150 m/s and the attenuation coefficient changes by more than 75%. At the beginning of the reaction the fractional conversion of monomer to polymer can be obtained from the sound velocity after calibration. In the later stage of the process polymer relaxation dominates and a goes through a sharp maximum when the reaction temperature matches the dynamic glass transition temperature Tg,dyn of the polymer/monomer mixture within the droplets. Then the conversion can be directly calculated from T g,dyn.

Operating Principle

Ultrasound attenuation α and velocity ν are measured as a function of temperature using two different techniques.

  1. A customized thermostated transmission cell equipped with special temperature resistant transmitters can be used in a wide temperature and pressure range, especially for materials with high attenuation, α and ν are determined from the running-time and the attenuation of a pulsed signal.
  2. The commercial, resonator based instrument Rheoscan1 (TF Instruments) is used for high resolution measurements, α and ν are determined from the frequency shift and width of the resonance curve.

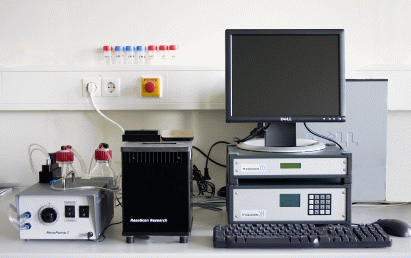

Fig. 1: Commercial ultrasonic device Rheoscan 1 and schematic drawing of customized ultrasonic transmission cell.



Specifications

  homemade  commercial
Sample volume: 15 mL 0.2 mL
Temperature: 0 °C – 150 °C +5°C - +85°C
Frequency: 4 MHz 7 - 11 MHz



Applications

Swelling or plastification of

  • polymer or resin particles in dispersions or slurries
  • seed latices by monomers
  • binders in coating formulations due to co-solvents;

Phase transitions of surfactants in emulsions;
Complexation and aggregation of polyelectrolyte complexes in aqueous solutions;
Monitoring of emulsion polymerization reactions.



Ultrasonic attenuation



Fig. 2: Effect of temperature on the US attenuation of PS dispersions different volume fractions of ethyl benzene fs.





Daempfung

Fig. 3: Ultrasound attenuation and velocity as a function of time during the miniemulsion polymerization of polystyrene at different initiator concentrations.





Umsatz

Fig. 4: Conversion as a function of time for miniemulsion polymerization of styrene at different initiator concentrations. Closed symbols refer to gravimetrically determined data, open symbols to conversion values obtained from ultrasound attenuation, and solid lines to the values calculated from the initial decay the ultrasound velocity.



Literature

  1. P. Pawelzyk, M. L. Toledo and N. Willenbacher (2013) Ultrasonic in-line monitoring of styrene miniemulsion polymerization. Chemical Engineering Journal 219:303–310.
